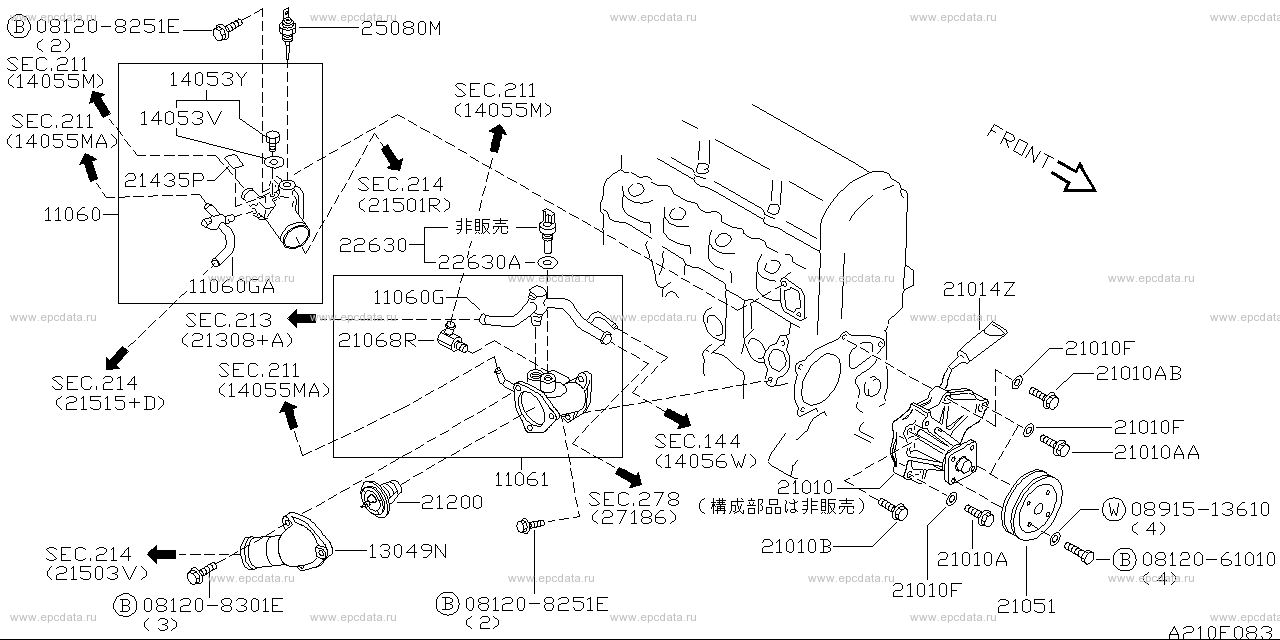

210 - water pump & cooling fan & thermostat (engine) for Nissan Vanette Serena KVC23

	Frame / Series KVC23 / C23 body W (wagon ) engine CD20T (2000 diesel turbo ) drive 2WD (two-wheel drive ) Manufacture period 06.1991 - 01.1997 grade FX transmission MT (manual transmission )

---

Applies for models	Manufacture period	Spec
CD20T	06.1991 - 08.1993
CD20T	08.1993 - 05.1994
CD20T	05.1994 - 08.1995

Open full screen picture Up to the top

0812061010 081208251E 081208301E 0891513610 11060 - outlet, water 11060G - connector 11060GA - connector 11061 - housing, thermostat 13049N - inlet, water 14053V - gasket, plug 14053Y - plug assembly, air relief 21010 - pump assembly, water 21010A - bolt 21010AA - bolt 21010AB - bolt 21010B - bolt 21010F - washer, lock 21014Z - gasket, liquid 21051 - pulley, fan & water pump 21068R - connector 21200 - thermostat assembly 21435P - label, caution water 22630 - sensor assembly, temperature (water temperature sensor) 22630A - gasket, temperature sensor 25080M - gauge, temperature engine unit

---

Applies for models	Manufacture period	Spec
CD20T	08.1995 - 01.1997
CD20ET	01.1997 - 01.1998

Open full screen picture Up to the top

0812061010 081208251E 081208301E 0891513610 11060 - outlet, water 11060G - connector 11060GA - connector 11060GB - connector 11060GC - connector 11061 - housing, thermostat 13049R - inlet, water 21010 - pump assembly, water 21010A - bolt 21010AA - bolt 21010AB - bolt 21010B - bolt 21010F - washer, lock 21014 - gasket, water pump 21014Z - gasket, liquid 21051 - pulley, fan & water pump 21200 - thermostat assembly 21435P - label, caution water 22630 - sensor assembly, temperature (water temperature sensor) 22630A - gasket, temperature sensor

Vanette Serena KVC23
